Not every project comes with straight walls and simple layouts.

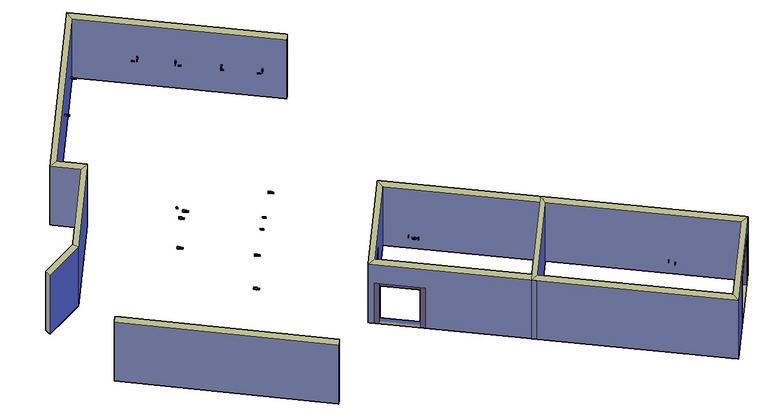

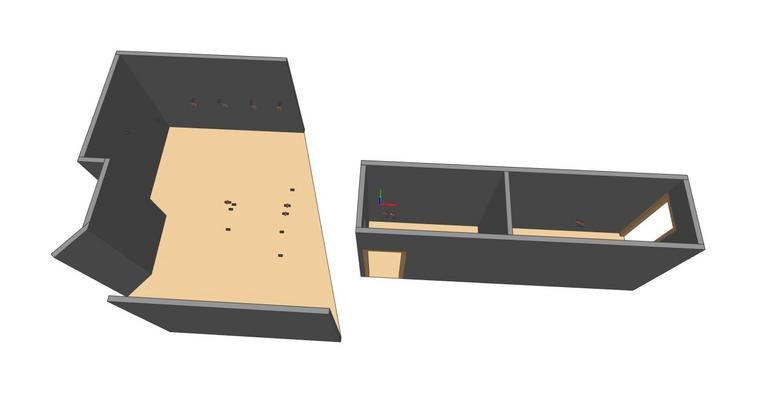

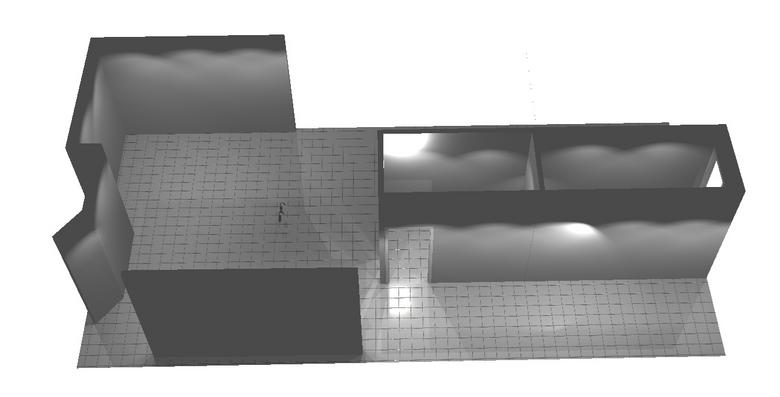

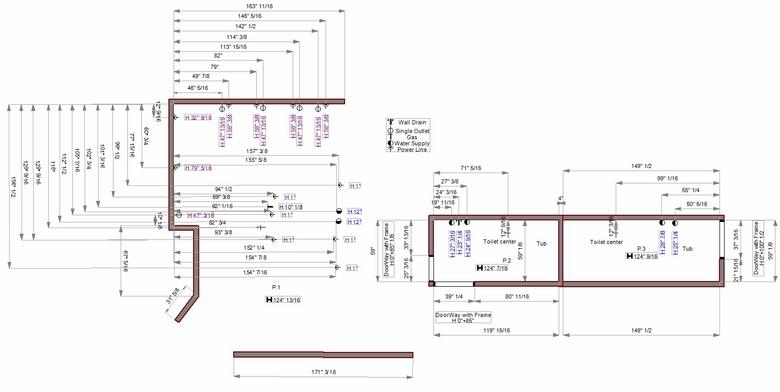

This recent field measuring project included multiple rooms, angled transitions, utility coordination, and detailed fixture placements — all captured on-site and converted into precise 2D drawings and fully detailed 3D models.

But the real game changer?

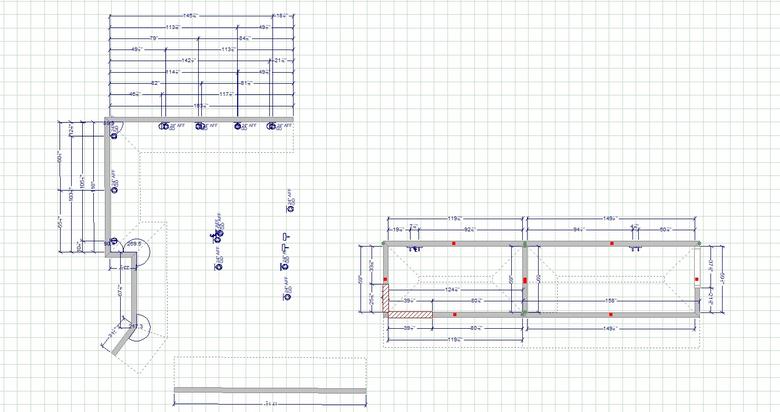

⚡ Instant conversion to 2020 files directly on-site!

No waiting for redraws.
No manual conversions later.
No costly back-and-forth between teams.

With InnoDraw, every measurement flows directly into production-ready deliverables:

✔ Accurate on-site measurements for complex layouts
✔ Instant conversion to 2020 files on-site
✔ Complete 2D + 3D deliverables
✔ Electrical, plumbing, and fixture placement included
✔ DXF and IFC compatible outputs for seamless coordination
✔ Faster design, quoting, and manufacturing workflows
✔ Reduced errors before production begins

From field measurements → to CAD → to 2020 → to manufacturing-ready outputs — all in one streamlined workflow.

Complex projects don’t have to slow you down when the process is built for precision.
