InnoDraw is a Third Party Service Marketing Partner.

Most kitchen measurements still end with someone going back to the office to rebuild everything manually in 2020.

This project shows a different workflow.

Using InnoDraw, the kitchen was digitally measured onsite and converted directly into a fully usable 2020 Design file — right at the job site.

Not later.
Not after CAD cleanup.
Not after a redraw.

Immediately onsite.

From one field measurement session, the workflow generated:

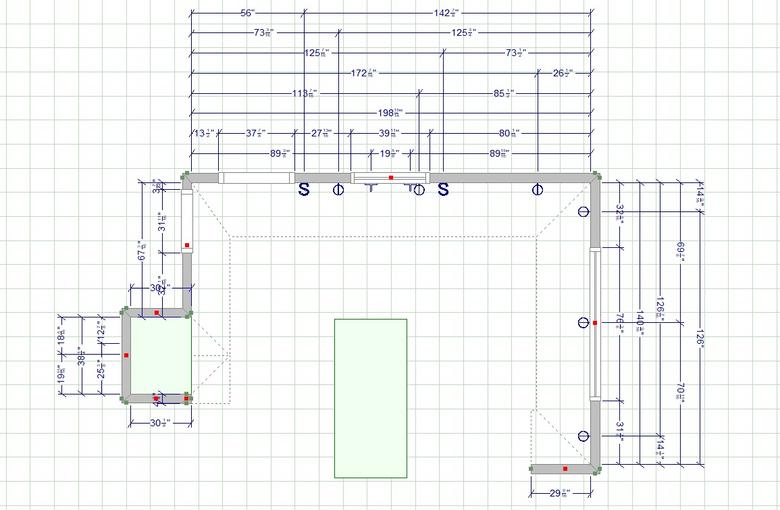

• 2020 kitchen layouts
• Elevations
• Electrical planning

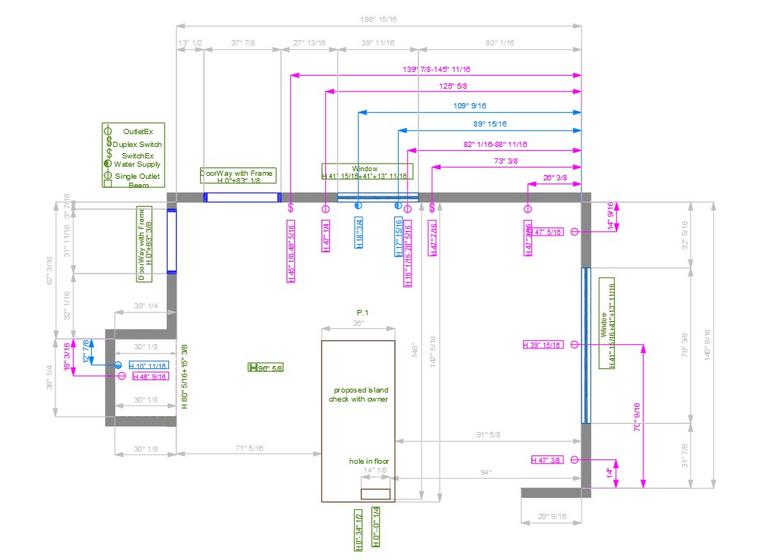

• Production-ready CAD drawings

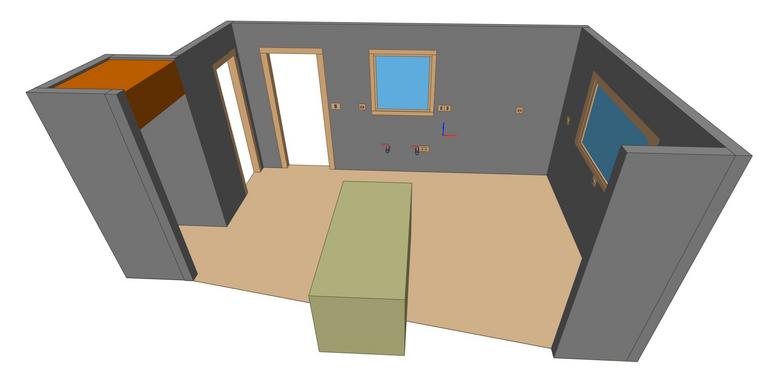

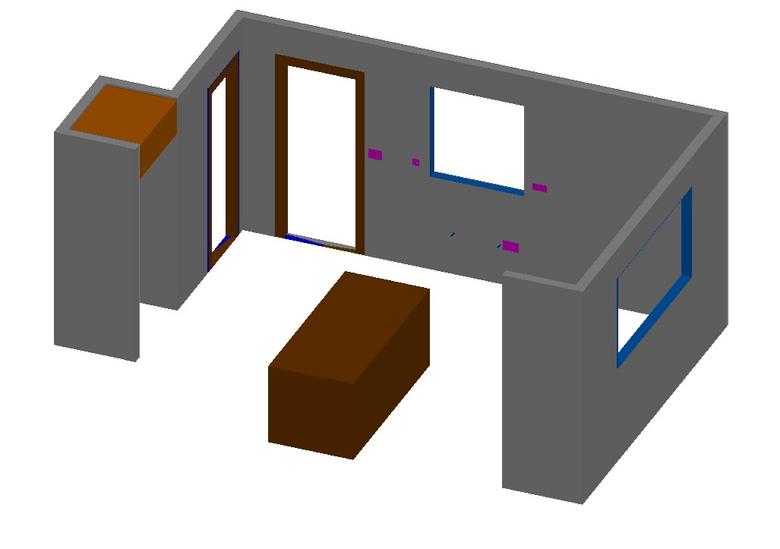

• 3D visualizations

The biggest advantage is not just speed — it’s continuity.

When measurement data converts directly into 2020 in real time, designers, cabinet shops, and production teams all work from the same accurate source from day one.

That means:
✔ Fewer interpretation mistakes
✔ Reduced remeasure visits
✔ Faster approvals
✔ Smoother production handoff
✔ Shorter design-to-install timelines

The future of kitchen design is not separate measurement and design workflows.

It’s live field-to-2020 conversion directly onsite.

👉www.innodraw.com
