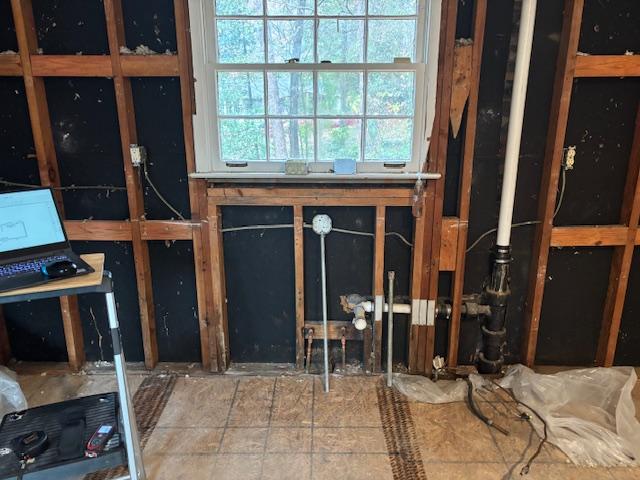

Demo-stage conditions required extremely precise measurement of plumbing, outlets, and studs - ideal conditions for the InnoDraw real-time laser workflow.

Case Study: How Frugal Kitchens (Atlanta) Turned a Demolition-Stage Kitchen Into CAD-Ready Files in Under One Hour — With InnoDraw + Leica Laser

For Matterport Service Providers Expanding Into Measurement & CAD Services

Hi All,

Matterport Service Providers (MSPs) are increasingly asked to deliver more than 3D tours.

Designers, remodelers, architects, and fabricators now expect precise measurements, CAD-ready drawings, and fast turnaround - often on the same day.

This case study demonstrates how MSPs can add high-value CAD deliverables by becoming an InnoDraw Service Provider (ISP) - using only a Leica Disto D2 and the InnoDraw real-time laser measuring platform.

The following project—completed for Frugal Kitchens (Atlanta) - shows exactly how an MSP can turn a construction-site visit into instant 2D/3D CAD output, without point cloud processing, without manual redrawing, and without expensive hardware.

PROJECT SNAPSHOT

► Client: Frugal Kitchens (Atlanta)
► Service Provider: Terry Suddreth
► Job Type: Kitchen remodel – cabinets removed
► CAD Format Requested: ProKitchen
► Equipment Used: Leica Disto D2 + InnoDraw software
► Status: Walls exposed, plumbing accessible
► Order Date: Nov 23, 2025
► Site Visit: Nov 25, 2025
► Deliverable: Instant 2D/3D CAD (ProKitchen-ready)

ON-SITE CONDITIONS

The kitchen was fully demoed to the studs, requiring precise mapping of:

► Window, sill height & framing
► Electrical outlet locations
► Plumbing supply and drain (exposed)
► Wall jogs, offsets, alcoves
► Doorway width and surrounding clearance
► Floor plan geometry across multiple surfaces

THE INNODRAW PROCESS | (As Per Project Timeline)

11:30 AM - Scanning Begins

► The MSP/ISP uses a Leica Disto D2 with the InnoDraw software
► Each laser shot instantly updates the drawing in real time - walls, windows, outlets, plumbing locations, and all geometry appear automatically.

12:10 PM - Measurement Completed

► Total field time: ~40 minutes.
► InnoDraw creates the drawing onsite—no second visit, no waiting for processing.

12:11 PM - Instant CAD Conversion

► The drawing is automatically converted to ProKitchen format and appears in the designer’s inbox one minute after scanning, ready to design.

This eliminates:

► Manual redrawing (typically 1 hour or more)
► Common dimensional errors
► Delays from point cloud processing
► Re-measures resulting from missing data

The images (below) show examples of the exact type of output that InnoDraw provides:

► Comprehensive dimensions
► Auto-drawn walls, windows, doorways
► Plumbing + electrical locations
► Room height and structural details
► Annotations for design programs
► This drawing quality is what allows designers to begin layout work immediately, with no redraw time.

WHY THIS MATTERS FOR MATTERPORT SERVICE PROVIDERS

Matterport is excellent for:

► Visual documentation
► Marketing
► Insurance
► As-builts and construction tracking
► But Matterport does NOT produce CAD-ready files, unless MSPs purchase costly add-ons (e.g., MatterPak) and clients manually convert point cloud data.

According to the InnoDraw:

► Point clouds require the designer to manually lay out geometry
► This takes time and introduces human error

InnoDraw solves this by delivering instantly structured CAD, including:

► Walls
► Windows
► Doors
► Outlets
► Sinks
► Plumbing
► Elevations
► 3D models

All drawn automatically while you measure.

BUSINESS IMPACT FOR DESIGNERS & REMODELERS

The designer normally spends:

► 1 hour travel
► 1 hour measuring
► 1.5-2 hours consulting
► 1 hour redrawing

Total: 3.5 - 4 hours per site.

With InnoDraw, this is cut in half—saving 9 -10 hours per month, enabling 4-5 additional kitchen designs, equating to:

► $12,500 additional monthly margin per designer
► >$150,000 annual ROI per designer per store

For MSPs becoming ISPs, this means:

You directly help designers and remodelers make more money - and they will request your service repeatedly.

WHY MATTERPORT PROVIDERS ARE PERFECT INNODRAW SERVICE PROVIDERS

From the InnoDraw Service Provider (ISP) Business Opportunity materials:

► 80% time saved per job
► 100% CAD conversion time eliminated
► 99.9% measurement accuracy
► Flexible subscription plans

MSPs already:

► Visit job sites
► Capture spatial data
► Understand floor plans, elevations, and 3D documentation
► Work with designers, remodelers, and architects

Becoming an InnoDraw Service Provider (ISP) is a natural extension - adding a high-margin service without heavy investment.

Outcome:

► Total time onsite: 40 minutes
► Time to CAD delivery: 1 minute
► Re-draw time saved: 1 hour
► Measurement errors avoided: nearly all
► Designer productivity increased immediately

This case demonstrates how MSPs can expand into profitable CAD-ready measuring services, using the tools they already understand.

By adding InnoDraw laser measuring to your MSP business, you become:

► A CAD service provider,
► A measurement specialist,
► And a high-value partner to designers, remodelers, architects, cabinet makers, and countertop fabricators.

InnoDraw Sales
sales@InnoDraw.com

InnoDraw
https://innodraw.com/

Book an InnoDraw Demo
https://innodraw.com/book-a-demo/

InnoDraw Service Provider Network
https://innodraw.com/isp-new-world/

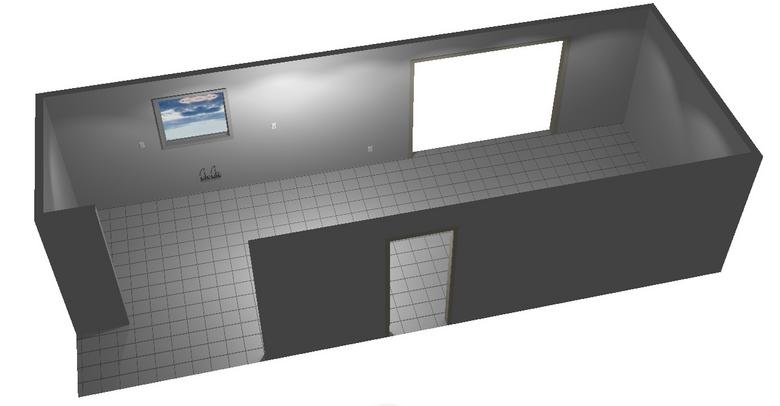

InnoDraw automatically generates this actual 3D model - fully structured CAD, not raw point clouds. The designer received a fully structured, ProKitchen-ready CAD file at 12:11 PM—one minute after the scan completed.

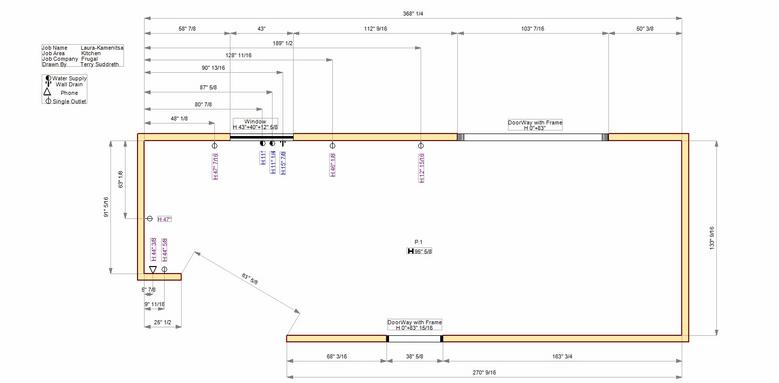

InnoDraw automatically generates this actual 2D drawing. The designer received a fully structured, ProKitchen-ready CAD file at 12:11 PM—one minute after the scan completed.

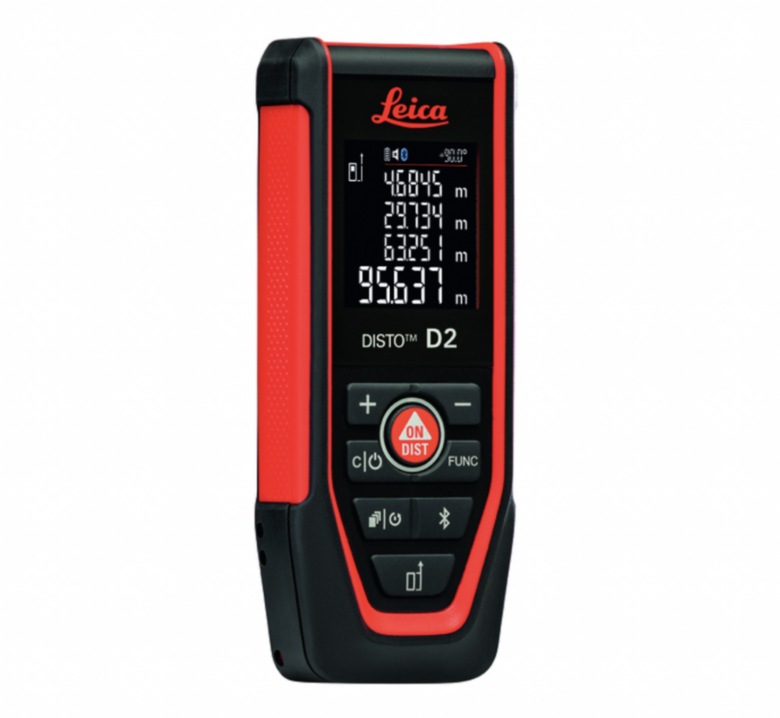

The entire 40-minute kitchen scan was completed using a standard Leica Disto D2 paired with the InnoDraw real-time measuring software. ($199 from Amazon)
